• Rated voltage: AC 110V-240V 50HZ/60HZ
• Load power: <400W
• Product body material: tempered glass-ceramic

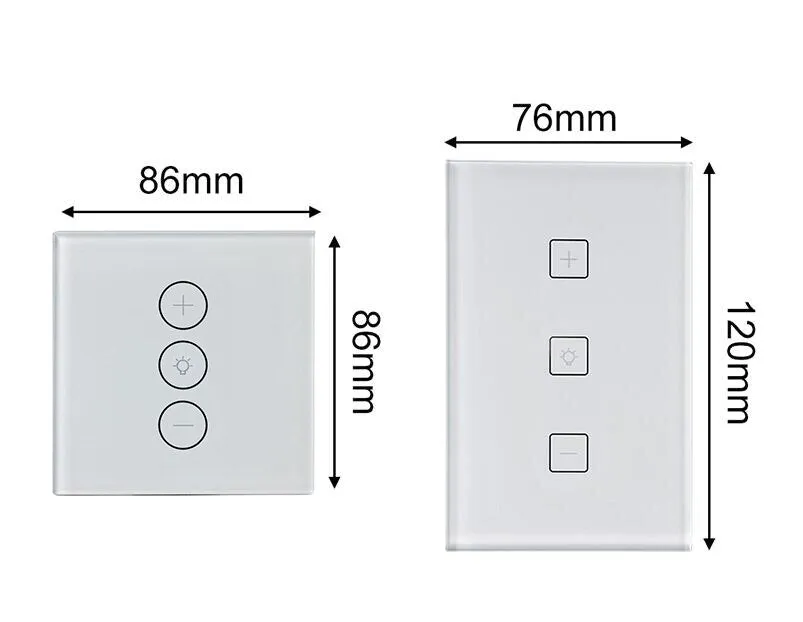

• Product size (approx.): EU type 86*86mm / 3.39*3.39in, US type 120*76mm / 4.72*2.99in
• Brightness adjustment: electronic stepless dimming
• Switch type: electronic dimming
• Applicable scope: incandescent, halogen, dimmable LED
• Lifetime: 10000h
• Operating environment: 0～80, 10%～93% (non-condensing)

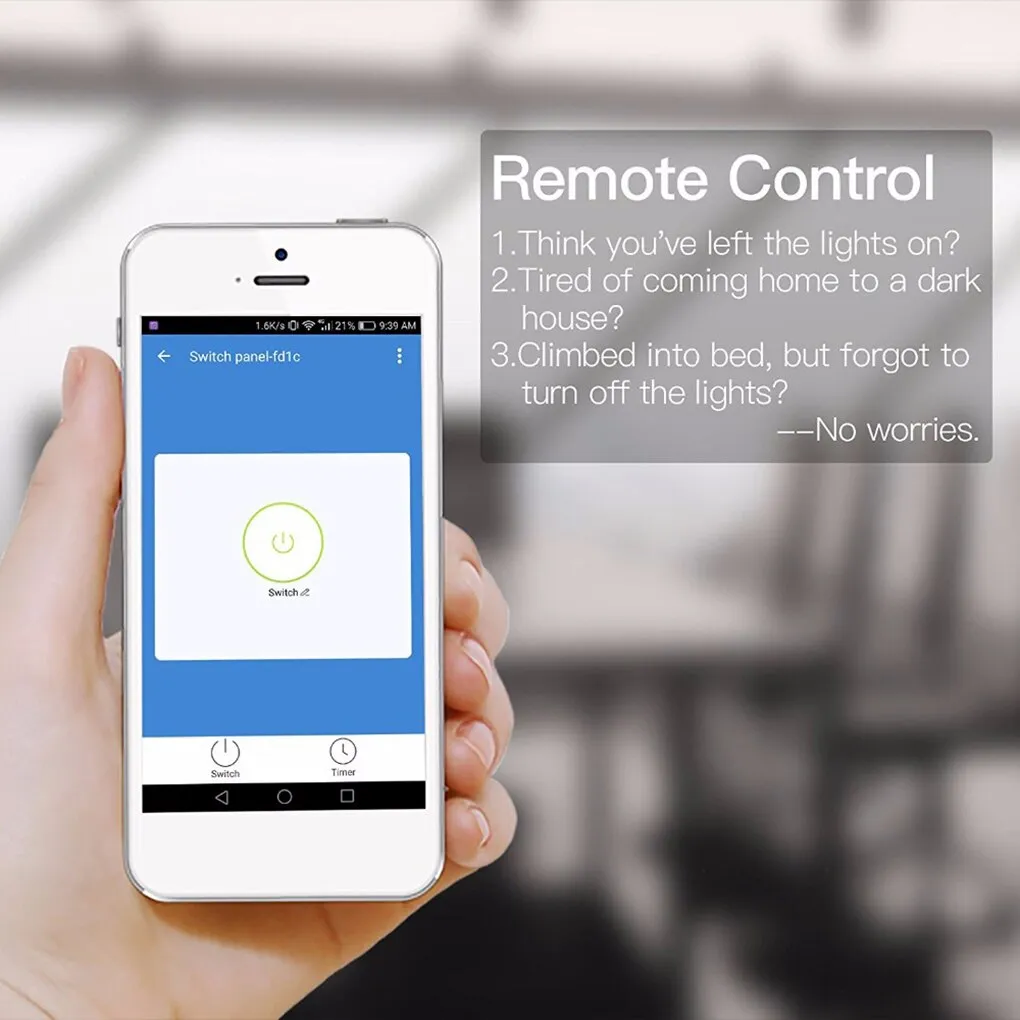

• Control distance: local <30M, remote without limit
• Weight:0.2 kg

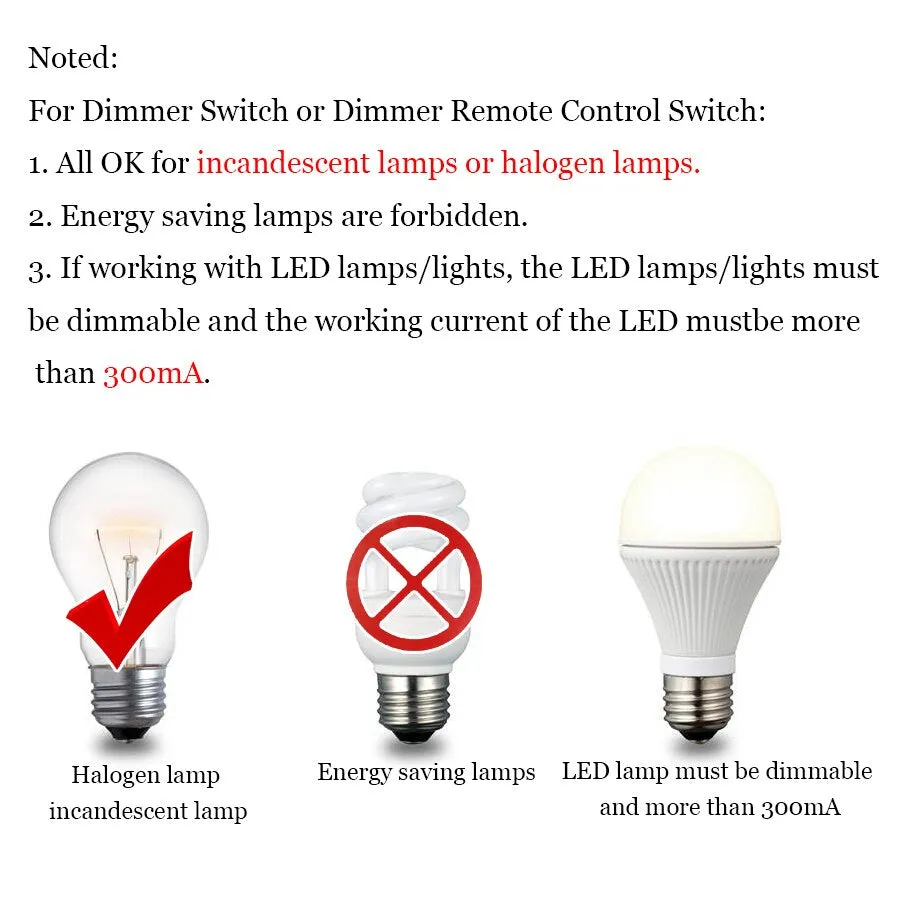

Workable lamp/light for the dimmer switch.

• There is not all kinds of the lamp/lights can work with the dimmer switch, please below information and confirm you having the dimming lamp/lights before order the Dimmer Switch.
• Ordinary LED lights can not be dimmed, but can be set on/off,
• The gear dimming LED light is not suitable for our dimmer switch. The gear type is dimming dividedinto several gears, such as 3 gears 20%, 50%, 90% .
• The dimmable LED light must be a resistive step-down LED lamp/stepless dimming LED lamp.
• All energy-saving lamps are not suitable for dimmer switches.
• Fluorescent lamps are not suitable for dimming switches.
• The total power of the lighting fixtures or fixtures used together cannot exceed 150W.
