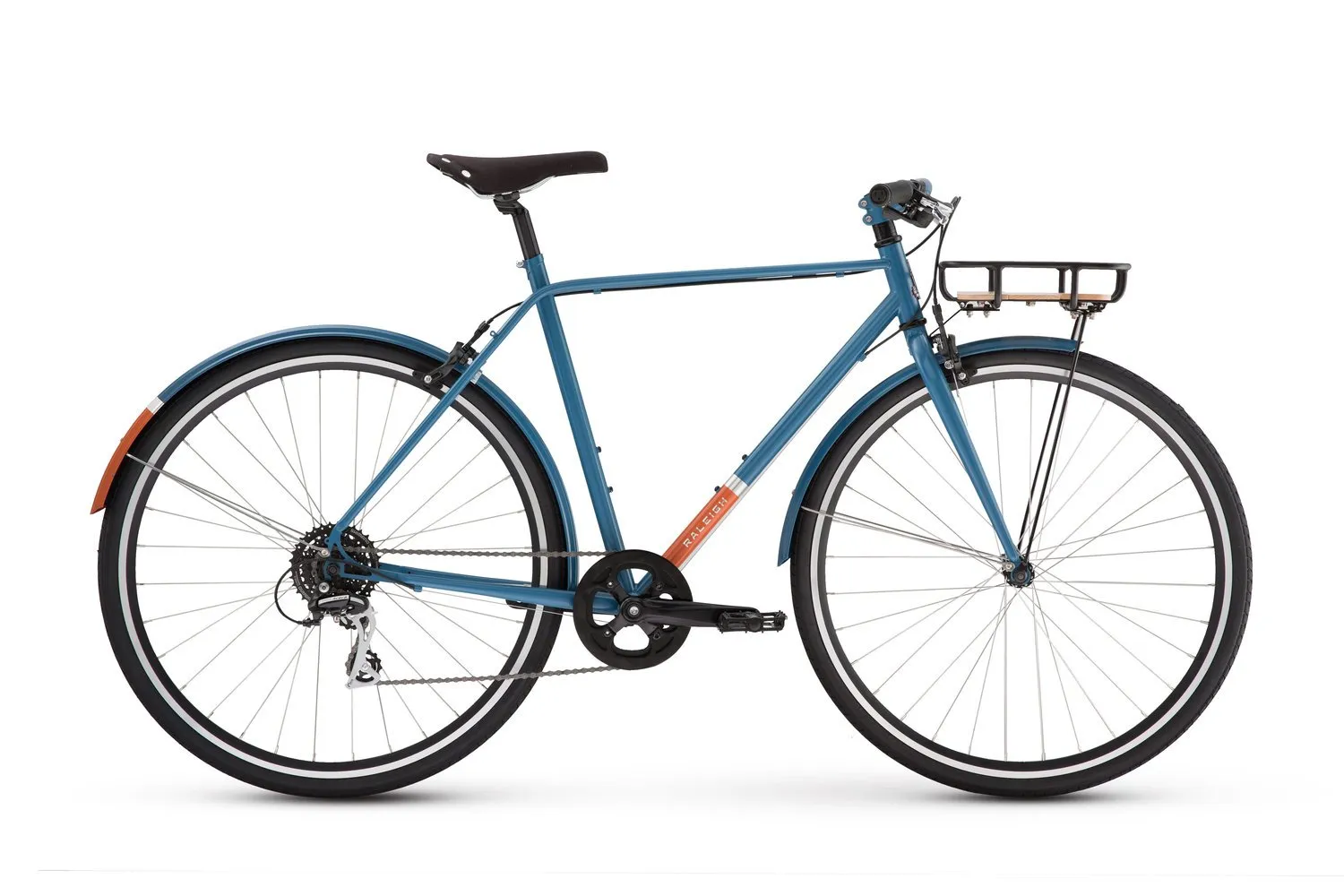

For slick city riding with hills and weather, the Raleigh Carlton 8 is great. This 8-speed steel bike with fenders handles well and gets the job done in classic Raleigh style. Whether you are riding up to the corner store for a gallon of milk or zipping down to work, the Carlton is ideal for casual urban trips, quick errands and commuting.
This city bike has a unique Raleigh silhouette with dual top tubes, a one piece integrated handlebar and stem for a clean look, a platform rack with classy wood inlay featuring a burnished Raleigh Heron insignia, and color matched fenders to help keep you clean and dry. The reflective decaling on the downtube adds visibility for riding at night or during early morning hours, and the bike bell lets peds and other riders know you’re coming.
| Frame: | 700c, Twin Top Tube Frame, Steel |
|---|---|

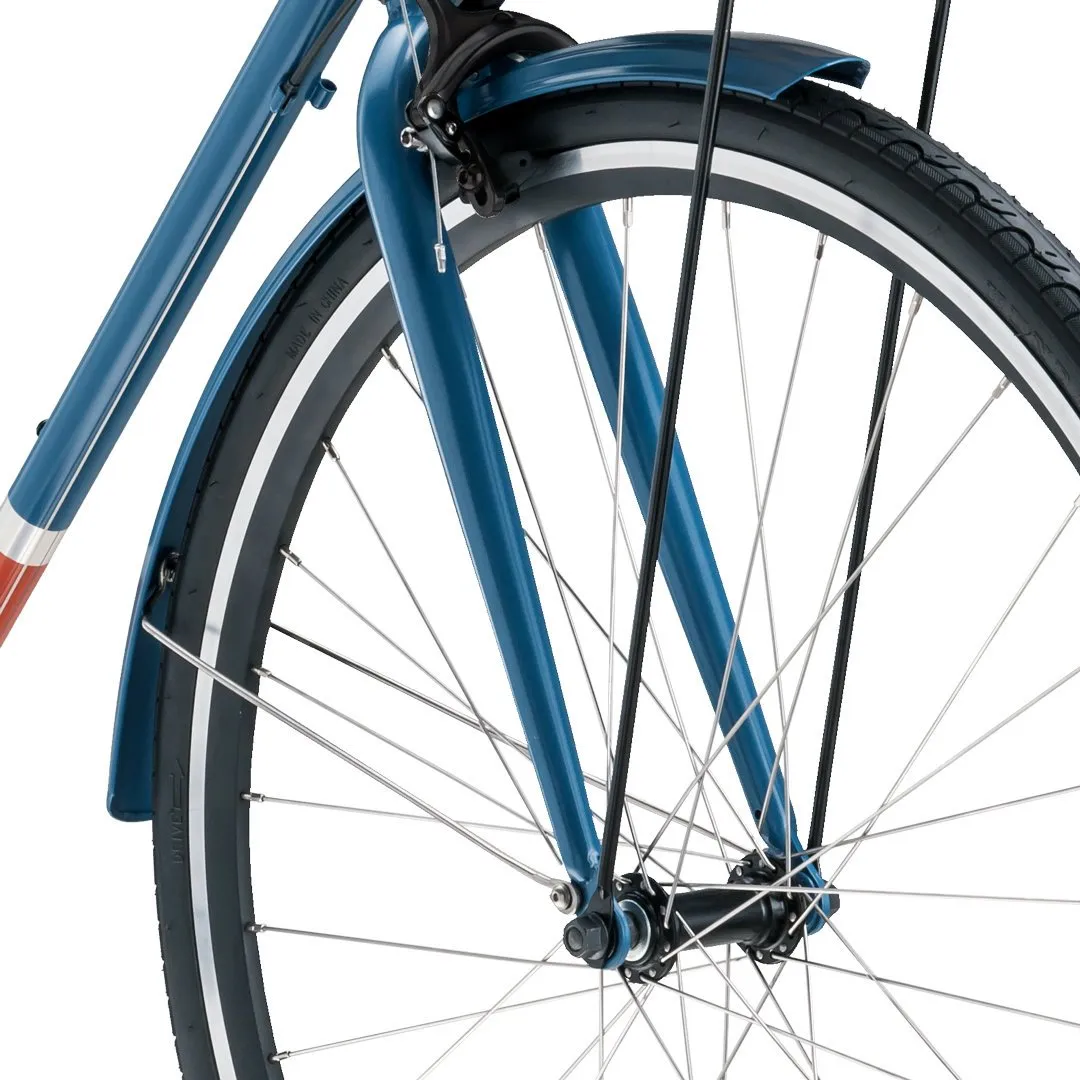

| Fork: | Steel with Die Cast Drop Outs |

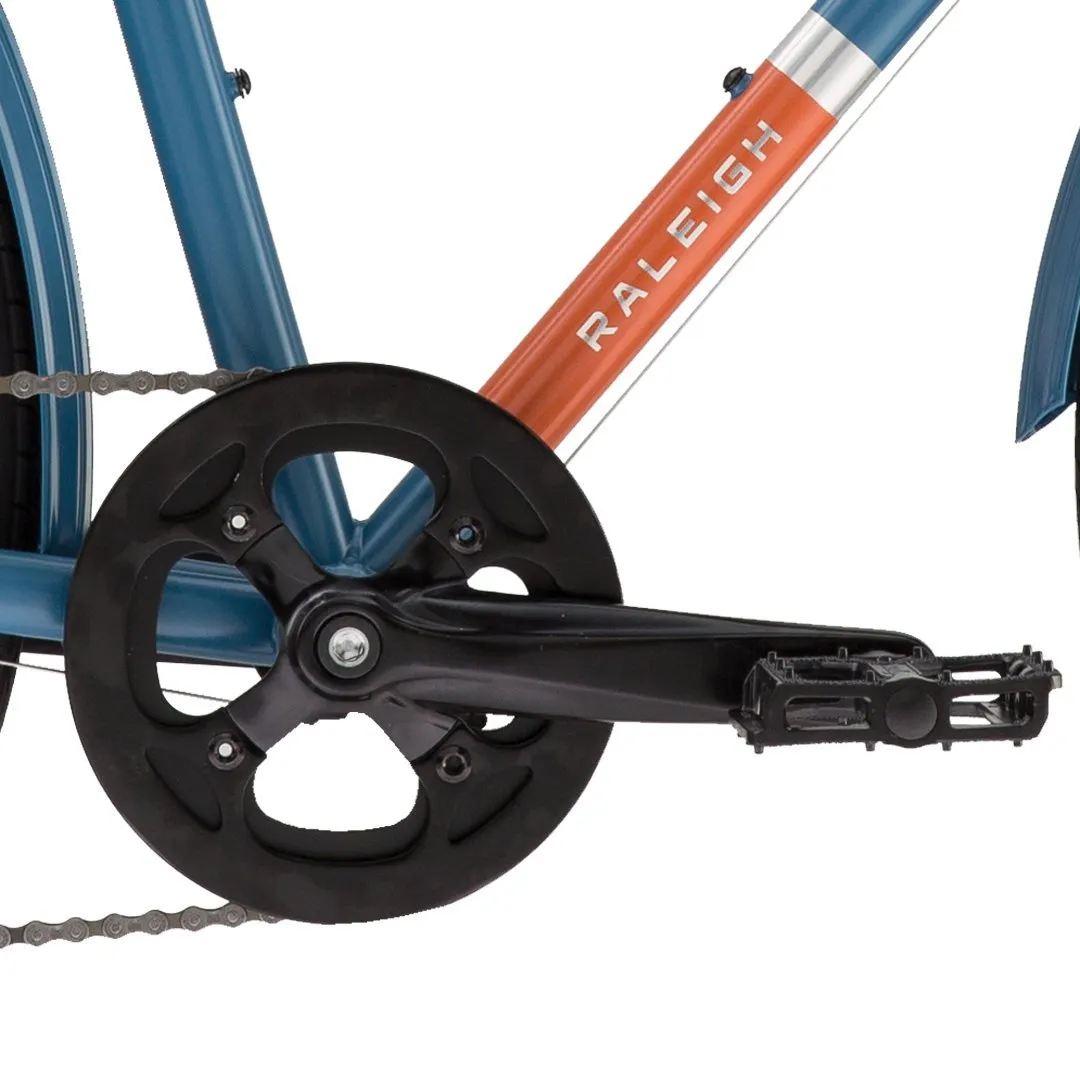

| Crank: | Forged Alloy, Three Piece, 104BCD with Guard |
| Hubs: | Alloy, 32 Hole, Nutted |
| Headset: | Sealed, 1-1/8" |
| Wheelset: | Included |
| Seatpost: | Alloy, Micro Adjust, 27.2 x 350mm |
| Stem: | Integrated with Handlebar, 7 Degree Rise |
|---|---|

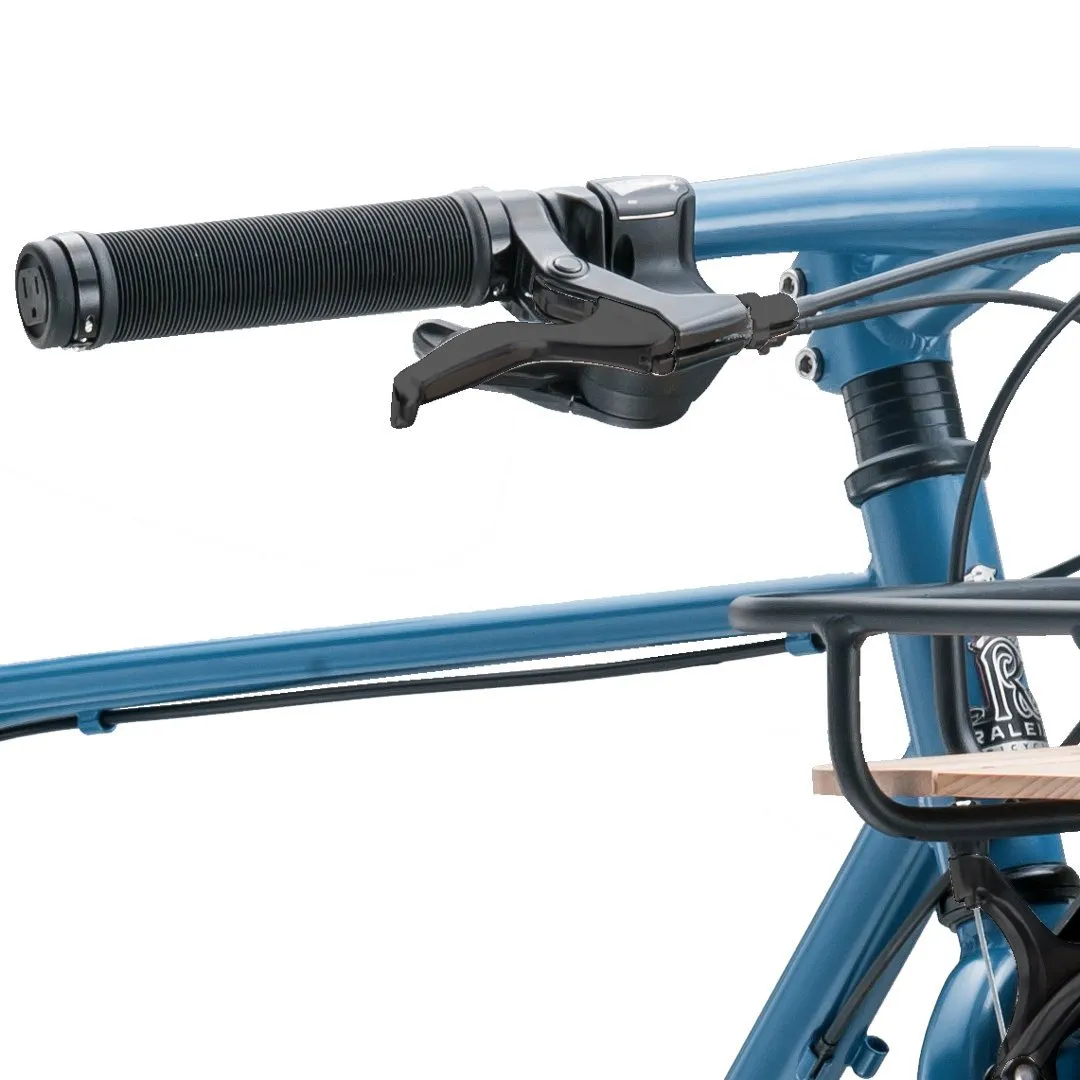

| Handlebars: | Alloy, Urban One Piece Bar and Stem, 620mm Wide, 12 Degree Sweep |

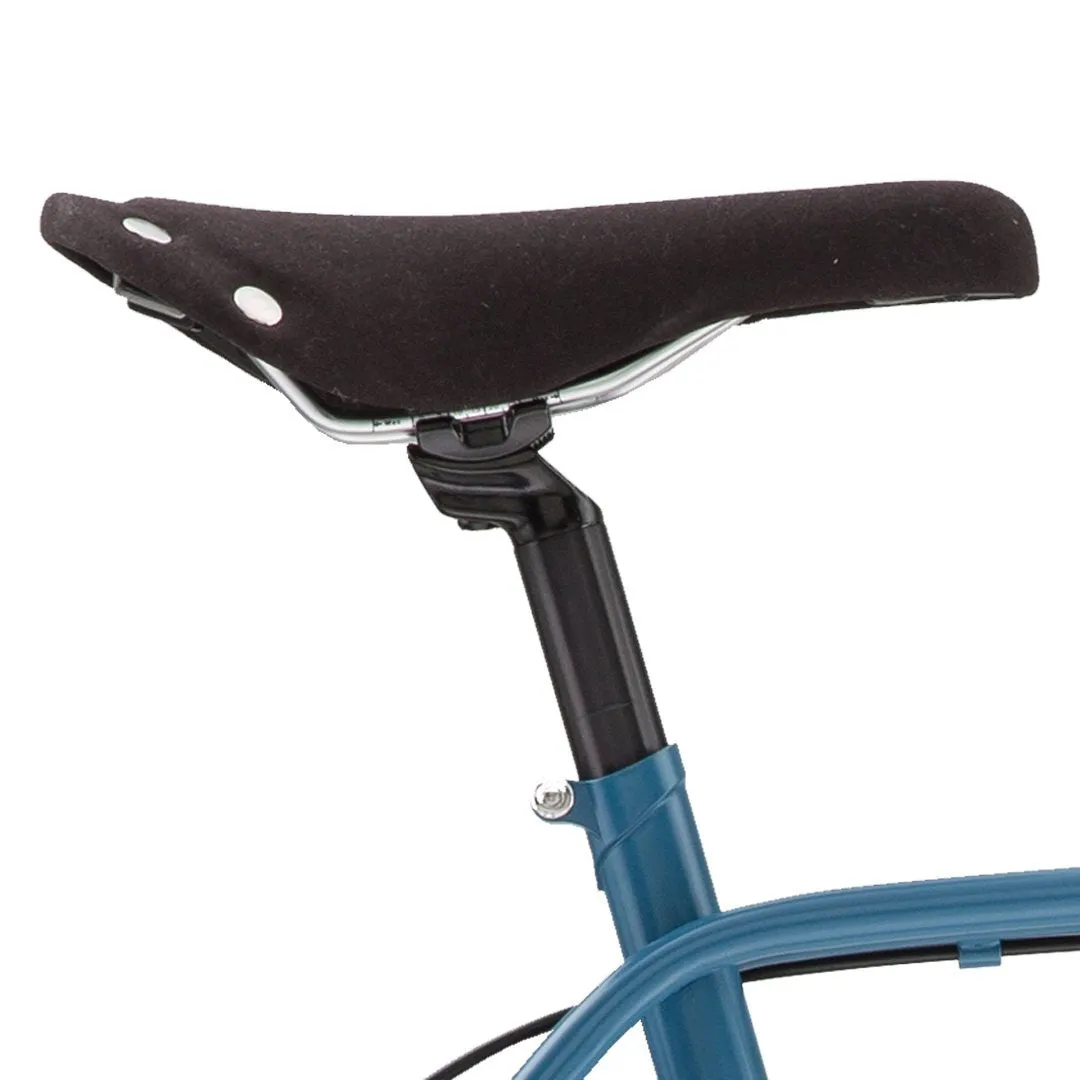

| Saddle: | Classic Road with Rivets |

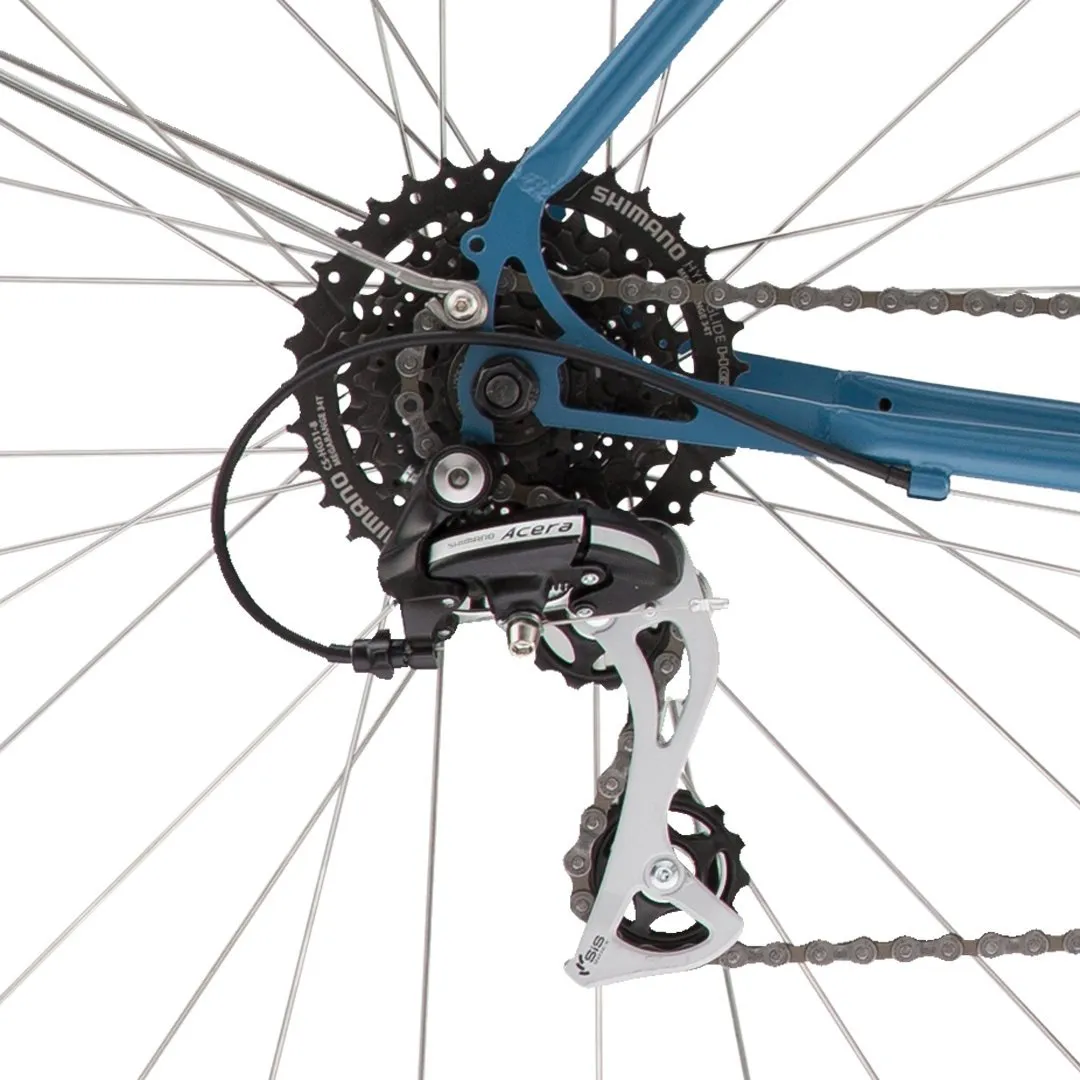

| Shifter: | Shimano 8 Speed, SL-M310 Right Only |
| Brakes: | Promax, Alloy Dual Pivot |
| Pedals: | Alloy Platform |
| Tires: | Kenda K193, 700 x 32c |
All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.
For all warranty claims, please contact our Warranty Team at . So that we can help you in a timely manner, make sure to include the following:
- 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
- 2. Brief description of the claim
- 3. Photographs
- 4. If the item is a bike or frame, include the serial number
We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!
Warranty does not apply to the following:
- • Any part of a product that has been installed, altered, repaired, or misused
- • Damage from unintended style of riding, abuse, neglect, accident, and racing
- • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
- • Failure to provide regular maintenance of any product
Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.
Note: Warranty is for original owner only.
