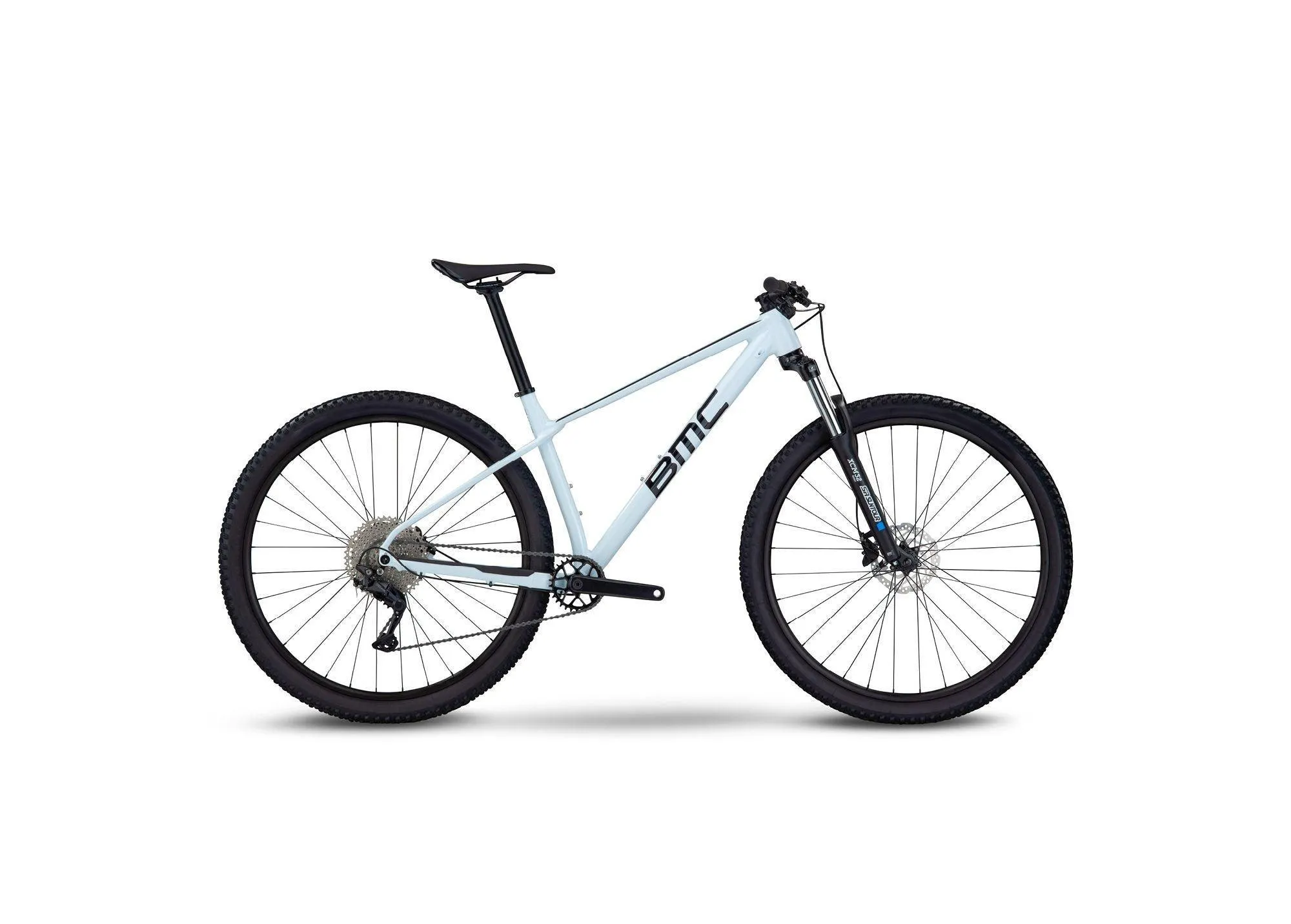

Twostroke AL emulates the Twostroke 01’s performance in a refined Smoothweld Premium Aluminium frame. Inspired by the Fourstroke and a fighter jet, it offers the perfect blend of performance, functionality and aesthetics, with radical geometry, wide tire clearance and integrated protection to combat technical terrain. Suntour’s XCM 32 fork and a 760mm alloy bar head a part-Shimano Deore 11-speed groupset, with XCD23 wheels and Maxxis Rekon Race tires.
-
Frame
Twostroke AL Premium Aluminium Hydroformed
Internal Cable Routing
BSA Threaded Bottom Bracket
Post Mount Disc -
Fork
SUNTOUR XCM 32 -
Gears
1x11 -
Chainwheel
Lightweight Forged Alloy Cranks 30T 1x Specific Narrow Wide Chainring -
Cassette
SUNRACE 11-46T -
Chain
KMC 11 spd -
Rear Derailleur
SHIMANO Deore RD-M4120 11 spd -
Shifters
SHIMANO Deore SL-M5100-R 11 spd -
Brakes
SHIMANO BL-MT200 Levers. BR-MT200 Calipers | SHIMANO SM-RT10 (160/160 S-M - 180/160 L-XL) -
Handlebar
Alloy 760mm -
Stem
Forged 6061 Alloy -
Seatpost
Alloy 31.6mm - 0mm Offset -
Saddle
Selle Royal Seta -
Hubs
SHIMANO HB-MT400-B / FH-MT400-B -
Rims
XCD23 -
Tires
Maxxis Rekon Race 2.25" -
Tire Clearance
58mm (Measured Width) -
Weight Limit
110 Kg -
Size S M L XL Rider Height CM <170 170-182 180-192 >190 Stack MM 588 598 608 623 Reach MM (reach) 422.5 445 465 485 Seat Tube MM (st) 410 440 480 510 Top Tube MM (tt) 597 618 638 658 Head Tube MM (ht) 87 93.5 106 122.5 Seat Tube Angle (sa) 75.0 75.0 75.0 75.0 Head Angle (ha) 67.0 67.0 67.0 67.0 Rear Center MM (rc) 425 425 425 425 Front Center MM (fc) 696 715 741 767 Wheelbase MM (wb) 1112.5 1135 1161 1185 BB Drop MM (drop) 64 64 64 64 Fork Length MM (fl) 505 505 505 505 Fork Rake MM (fr) 44 44 44 44 Trail MM (trail) 109 109 109 109 Crank Length MM 170 175 175 175 Stem Length MM 60 60 60 70 Bar Width MM 760 760 760 760 Bar Rise MM 4 4 4 4 Backsweep 9 9 9 9 Standover Height mm 725 730 735 750 Seatpost Length MM 350 400 400 400
