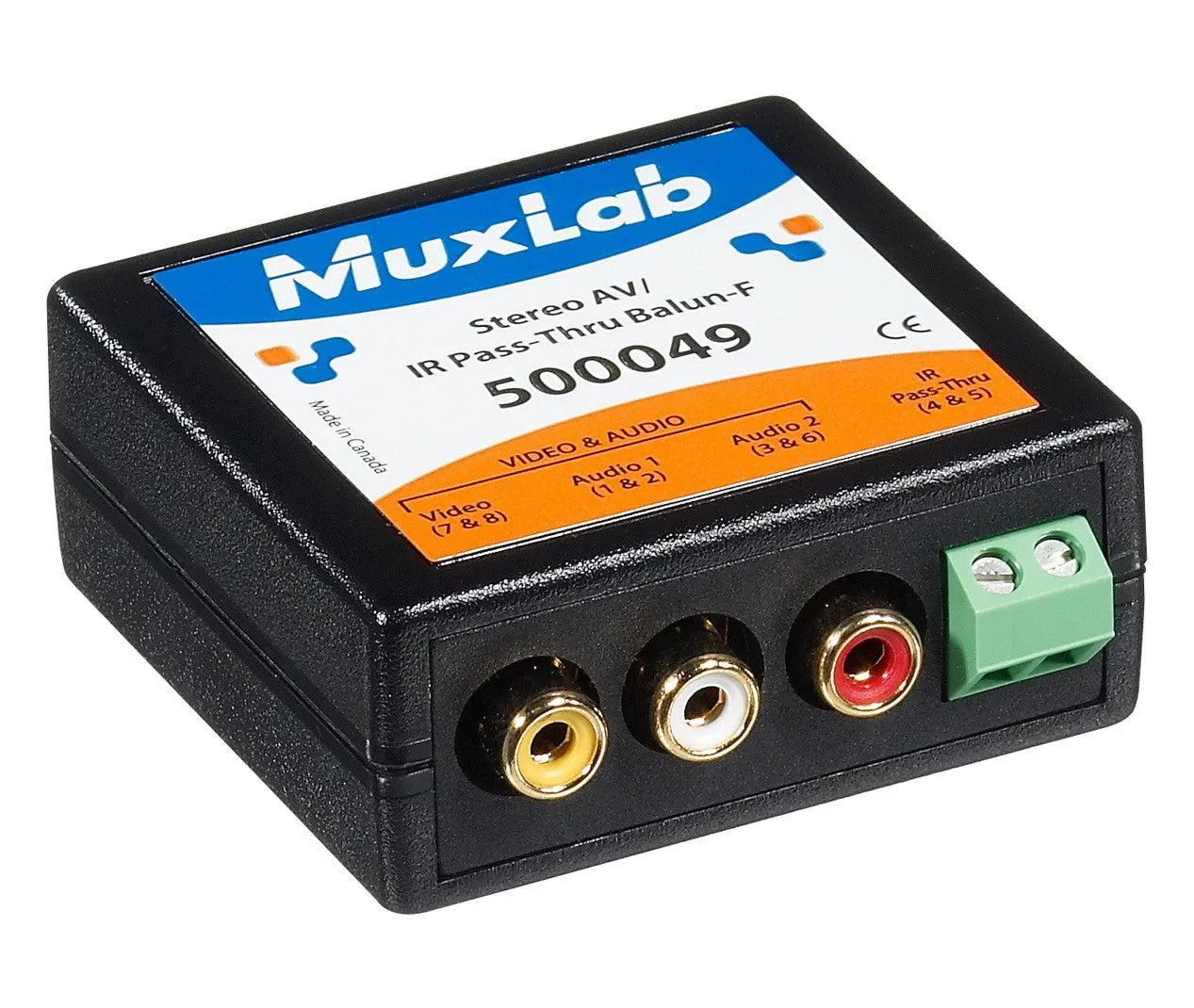

The VideoEase Stereo AV/IR Pass-Thru Balun (500048, 500049) allows one (1) composite video, one (1) stereo audio and one (1) IR emitter signal to be transmitted via a single Cat5E/6 cable in a point-to-point connection. The Stereo AV/IR Pass-Thru Balun features full audio bandwidth response for high fidelity applications and features built-in color-coded cable leads for ease of installation. The Stereo AV/IR Pass-Thru Balun also works in conjunction with third party IR Remote Control equipment allowing the IR Emitter to connected the IR control module using the same Cat5E/6 cable as video and audio for more cost-efficient cabling. Some of the applications are; classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing, and video kiosks.

• Video up to 2,200 feet (670m) via Cat 5E/6
• Audio up to 3,250 ft (990m) via Cat5E/6
• 20 Hz to 20 kHz audio bandwidth
• IR 2-wire emitter pass-thru on fourth twisted pair
• Built-in color-coded cable leads
