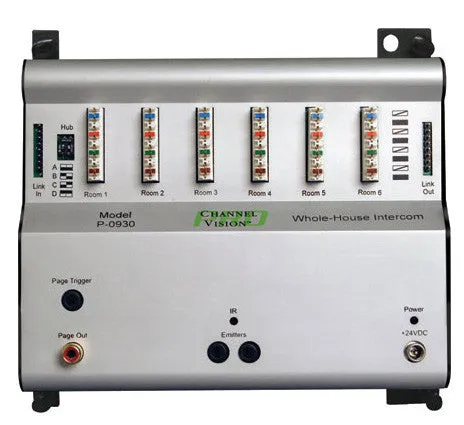

The CAT5 Whole-House Intercom System enables homeowners to communicate directly between rooms, the front door or the entire house through the Intercom Stations located in each room. The system offers extensive expandability for up to 24 Intercom Stations, including two (2) door stations, making it adaptable to virtually any size home.

• Page output for external audio systems
• 2 IR emitter outputs
• Link in/out connectors for easy expansion
• Mounts easily in a structured wire enclosure

• Operating Voltage: 15VDC
• Cable Requirements: 4 Pair UTP (CAT3 or better)
• Recommended Max. Cable Length: 500 ft - Door Station, 350 ft - Wall Station
• IR Frequency Range Supported (ST-2000): 30 kHz - 60 kHz
• IR Pick Up Range (ST-2000): 40 ft @ 35 kHz, 25 ft. @ 56 kHz
• Operating Temperature: -10° C to 50° C
